Commercial and Industrial Meters

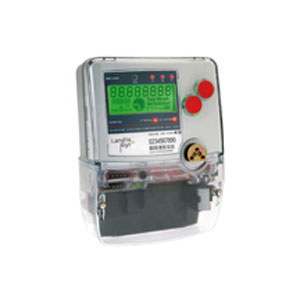

Landis+Gyr EM5300

The EM5300 current transformer meter is a high accuracy meter with complete feature set for energy and quality of supply monitoring and data recording. Applications The EM5300 meter simplifies meter asset management and reduces your inventory requirements by allowing one… Leia mais

Entre em contato


  • 1-10A CT or 5-20A CT Current Range
  • Extended voltage range for more supply applications
  • kWh Class 0.5 to IEC62053.22
  • kVARh Class 2 to IEC62053.23
  • Quality of Supply monitoring
  • Flexible interval data recording
  • Four fully programmable pulse relay outputs for energy management systems
  • 2A voltage free relay for load management for demand management applications
  • Backlight display for ease of reading
  • Interval data recording – up to 12 channels in 2 separately secure groups
  • Quality of supply monitoring sags and swells
  • Per phase voltage and current harmonic reporting
  • Powered RS232 for GSM connectivity
  • In Field replaceable battery


  • Additional 4 fully programmable relayed pulse outputs and 2 pulsed inputs for gas and water metering applications
  • Cost-effective AMR options
