3rd Generation Load Management

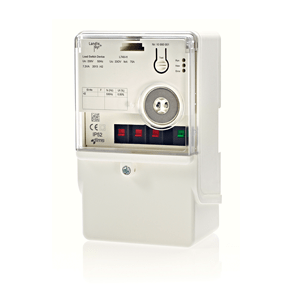

Landis+Gyr L740

L740 is Landis+Gyr’s unique offering for small and large utilities and network operators with ripple control systems, looking for a low risk, cost efficient migration path to the smart grid. Leia mais

Entre em contato
Características
  • Tariff and load control, max. 5 relays (16A or 40A)
  • Automatic control in case of communication failures
  • Time lines, loops, backup clock, low frequency load shedding, interpreter programs and learning functions
  • Dynamic load management: 15-minute load control applications
  • Direct commands with fast reaction (< 10s). Event controlled public lighting and street light control via text (SMS)
  • Ripple control standards, such as Decabit, Semagyr, Ricontic, Pulsadis, K22 and others
  • Dynamics3G: two-way Power Line Carrier Technology and DLMS standard
  • Software download
  • Individual remote parameterization of the devices
  • Status feedback: power failure, relay position error, tamper detection
Variações

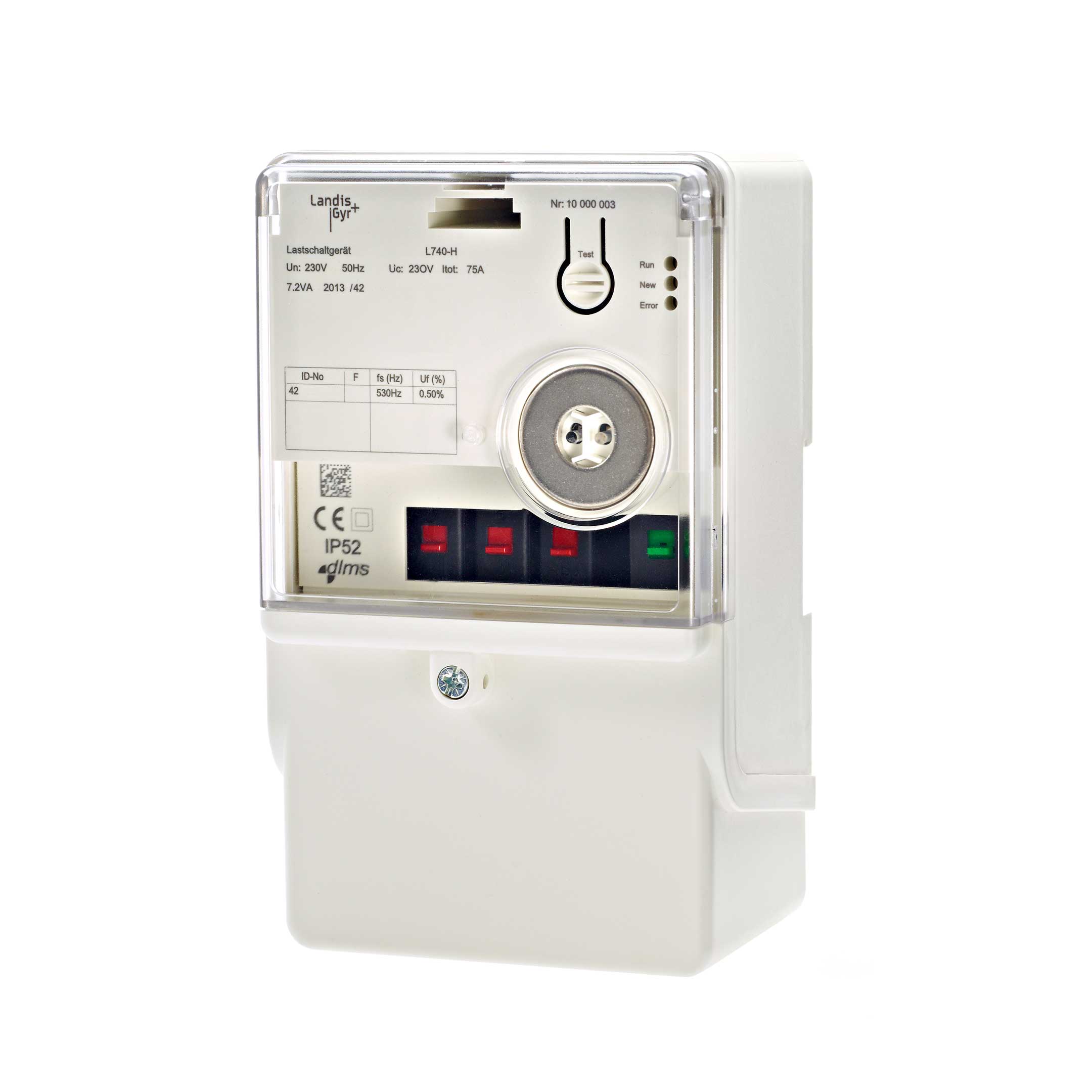

  • Hybrid Load Switch L740-H with 3 or 5 16A relays
  • Hybrid Load Switch L740-H with 1 14A relay
  • Hybrid Load Switch L740-H with 1 40A relay + 3 16A relays
  • PLC Load Switch L740-P with 3 or 5 16A relays
  • PLC Load Switch L740-P with 1 14A relay
  • PLC Load Switch L740-P with 1 14A relay + 3 16A relays
Disponibilidade
  • Europe, the Middle East and Africa
